450W max output power and punchy bass without a separate subwoofer
Get a truly immersive sound experience from your music, movies, and games with 450 watts of max output power. Feel the thrilling energy of your favorite music and movies from built-in bass ports that pack a powerful punch.
Dolby Atmos®
Hear a plane soar overhead. Feel a crowd swarming past you. Or get carried away by the energy of your go-to dance playlist. Hear extraordinary cinematic sound from all directions with the 3D audio experience of Dolby Atmos®.
MultiBeam™ 3.0
Wherever you're sitting, you'll be in the middle of the action. Our MultiBeam™ 3.0 delivers a wide, cinema-like soundstage that makes every high-speed chase or epic fight scene come alive. The sound beams perfectly fill your room, delivering truly immersive, lifelike, and realistic sound reproduction.
General Specifications
- Sound System: 5.0 channel
- Power Supply: 100 - 240V AC, ~ 50/60Hz
- Total Speaker Power Output: 450W (Max. @THD 1%)
- Soundbar Transducer: 5x (42x80)mm racetrack drivers, 4x 0.75" (20mm) tweeters
- Networked Standby Power: < 2.0 W
- Operating Temperature: 0°C - 45°C
Audio Specifications
- Frequency Response: 50Hz - 20kHz (-6dB)
- Audio Inputs: Optical, Bluetooth, USB (USB playback available in US version; for other versions, USB is for service only.)
Dimensions
- Main Soundbar Dimensions (W x H x D): 940 x 50.5 x 104 mm / 37" x 2.0" x 4.1"
- Soundbar Weight: 2.9kg / 6.5lbs
- Packaging Dimensions (W x H x D): 1180 x 120 x 160 mm / 46.5" x 4.7" x 6.3"
- Packaging Weight: 4.8kg / 10.6 lbs
- RMS @THD 1%: 225W
Control and Connection Specifications
- USB Port: Type A
- USB Rating: 5V DC, 0.5A
- Supporting File Formats: mp3
- MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 Sampling Rate: 16 - 48 kHz
- MP3 Bitrate: 80 - 320 kbps
- Bluetooth Version: v5.3
- Bluetooth Profile: A2DP v1.3, AVRCP v1.5
- Bluetooth Transmitter Frequency Range: 2400 MHz – 2483.5 MHz
- Bluetooth Transmitter Power: <15 dBm (EIRP)
- Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi Transmitter Frequency Range: 2412 - 2472 MHz
- 2.4G Wi-Fi Transmitter Power: < 20 dBm (EIRP)
- 5G Wi-Fi Transmitter Frequency Range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
- 5G Wi-Fi Transmitter Power:
- 5.15 - 5.25GHz: <23dBm
- 5.25 - 5.35GHz & 5.470 - 5.725GHz: <20dBm
- 5.725 - 5.825GHz: <14dBm (EIRP)
- Note: Band 5.6 - 5.64 GHz will be disabled when shipped to Australia/New Zealand.
Video Specifications
- HDMI Video Input: 1
- HDMI Video Output (with Enhanced Audio Return Channel, eARC): 1
- HDMI HDCP Version: 2.3
- HDR Pass Through: HDR10+, Dolby Vision
Items included:

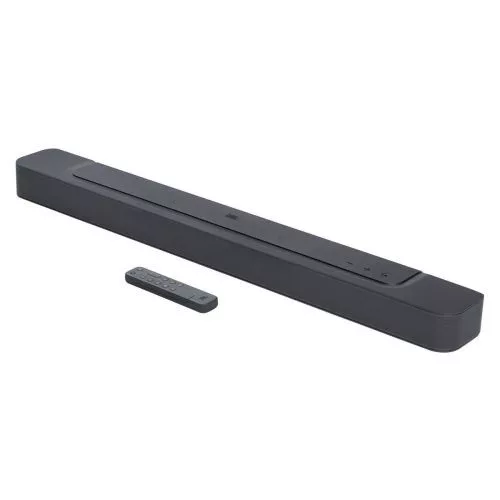

- Main Soundbar
- Remote Control with 2 x Batteries
- Power Cords (up to 4 pcs depending on region SKUs)
- 1 x HDMI Cable
- 2 x L-Shape Wall-Mount Brackets (Main Bar)
- Quick Start Guide
- Safety Instruction and Warranty Card
- Wall Mount Template
